GE Historian è il cuore della piattaforma software di GE Digital per fornire il fondamento di complete soluzioni aziendali.



GE Historian lega insieme Big Data e le informazioni provenienti da tutto l’ambiente produttivo senza che la risoluzione dei dati venga compromessa. Consente la visione  integrata di tutte le attività produttive con accuratezza e permette un accesso ai dati storici istantaneo.

Cosa mi da Historian rispetto ad un comune Data Base Relazionale? vantaggi chiave! Incluse le capacità intrinseche di acquisire i dati, la velocità di acquisizione, l’elevata capacità di compressione, la robusta ridondanza, avanzata security e la velocità nel fornire valore. Sono uno strumento per chi gestisce l’impianto e la produzione, con ridotti costi ed impegno per il deployment e la manutenzione.



Caratteristiche

Realizzato per l’ acquisizione, l’archiviazione ed il recupero di informazioni del processo industriale, GE Digital Historian ne migliora la visibilità, contestualizza dati grezzi ed aggrega isole di informazione, consentendo di migliorare e velocizzare la fase decisionale, incrementare la produttività e ridurre i costi ad ogni livello aziendale.

GE Digital Historian offre capacità e benefici unici per un vantaggio competitive e sostenibile:

  • Built-in Data Collection
  • Velocità nelle azioni di Read/Write
  • Elevate compressione di dati
  • Risultati in breve tempo Security dei dati avanzata
  • Robusta Redundancy per High Availability
  • Compatibilità aperta e su livelli

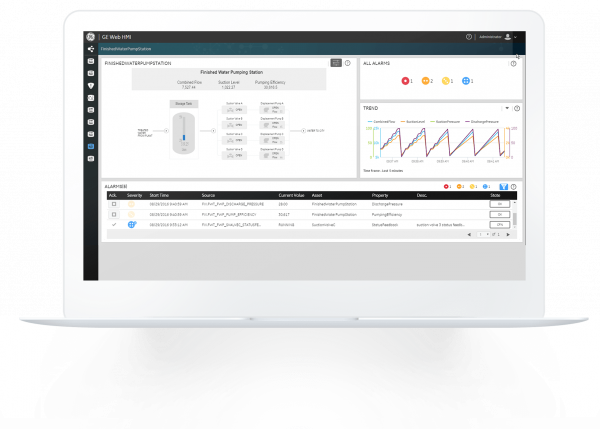

Con GE Digital Historian, si possono confrontare dati e cicli produttivi passati, analizzare i dati precedenti a un evento di downtime e tracciare un ideale ciclo di produzione a fronte del ciclo in attività. Si possono generare facilmente report e condividere informazioni con tutta l’azienda utilizzando tool web standard (come GE Digital Historian Analysis)



Software requirements

This topic describes the minimum Historian software requirements.

Microsoft® Windows® Operating Systems Historian requires one of the following operating systems, with latest service packs or revisions:

  • Microsoft® Windows® Server 2016 (64-bit)
  • Microsoft® Windows® Server 2012 R2 (64-bit)
  • Microsoft® Windows® Server 2008 R2 (64-bit)
  • Microsoft® Windows® 7 Professional (32-bit or 64-bit)
  • Microsoft® Windows® 8.1 Professional (32-bit or 64-bit)
  • Microsoft® Windows® 10 (32-bit or 64-bit)

Note: Historian 7.0 32-bit components such as Collectors, Excel Add-in 32-bit, Interactive SQL 32-bit, APIs, and Non-Web Administrator work as 32-bit application on 64-bit Windows operating systems using WoW64 mode (Windows-on-Windows 64-bit).

However, you can read and write data from a 64-bit Historian Server.

If you use Historian 6.0 or later on Windows Server 2008 (32/64-bit) or Windows Server 2008 R2, you must go for a Full Installation and not Core Installation of Windows.

Network Interface Software The TCP/IP network protocol is required.
Microsoft®.NET Framework 4.5.1 The installation of .NET 4.5.1 is a prerequisite to the Historian install. You can install it manually or you will be prompted to download and install it via the Historian install.

In order to have .NET 4.5.1 downloaded and installed as part of the Historian install, your Proxy must be configured for internet access.
Microsoft® SQL Server® One of the following 32-bit or 64-bit SQL Server systems to configure alarm and event archiving or to use Historian as a linked server:

  • Microsoft® SQL Server® 2008 R2 SP2, Standard, or Enterprise Edition
  • Microsoft® SQL Server® 2008 Express
  • Microsoft® SQL Server 2008 R2
  • Microsoft® SQL Server® 2012 SP3
  • Microsoft® SQL Server® 2014 SP1 Express, Standard, or Professional
  • Microsoft® SQL Server® 2016 Express, Standard, or Professional
  • Microsoft® SQL Server® 2017 Express, Standard, or Professional

Note: The collation for your Alarm and Event database needs to match the collation of your SQL Server. This happens automatically by default but can become different if the Alarm and Event Database is moved to another SQL Server.

Microsoft® Excel® The Historian Excel Add-In requires one of the following

  • Microsoft® Excel® 2007 (32 bit only)
  • Microsoft® Excel® 2010 (32 & 64 bit)
  • Microsoft® Excel® 2013 (32 & 64 bit)
  • Microsoft® Excel® 2016 (32 & 64 bit)

Web Server Web server requirements are as follows.

  • Microsoft®.NET Framework 4.5.2
  • Historian Client Tools 7.0 or greater
  • OLE DB, User API, and Historian Client Access Assembly
    Historian Server
  • Microsoft® Windows® Server 2016 (64-bit)
  • Microsoft® Windows® Server 2012 R2 (64-bit)
  • Microsoft® Windows® Server 2008 R2 SP2 (64-bit)
  • Microsoft® Windows® 10 (64-bit)
  • Microsoft® Windows® 8.1 Professional (64-bit)
  • Microsoft® Windows® 7 Professional (64-bit)
  • Microsoft®.NET Framework 3.5

Note: Historian Server runs on 64 bit only.

Supported Browsers
The following are the supported browsers for Historian Web Administrator and Trend Client:

  • Firefox 46+
  • Google Chrome 39+
  • Internet Explorer 11

Supported Browsers for Historian Help The following are the supported browsers for Historian Help:

  • Firefox 46+
  • Google Chrome 39+
  • Internet Explorer 11
  • Microsoft Edge 40

Hardware requirements

This topic describes hardware requirements for Standard Historian.

Historian Server For Historian Servers, the minimum hardware requirements are:

  • A 2.4 GHz clock-speed Intel Core i3 or i5 or i7 CPU or equivalent AMD Phenom CPU with 8 GB RAM for a 64-bit Historian Server.
  • A DVD-ROM drive.
  • 80 GB free hard-drive space for the data archives, message files, buffer files, and log files used by the system.
  • 100 Mbps TCP/IP-compatible network interface adapter for network communication and certain I/O drivers.

Data Collector Node For Data Collector nodes, the recommended minimum hardware requirements are:

  • A 2.0 GHz clock-speed Intel Core i3 or i5 or i7 CPU or equivalent AMD Phenom CPU with 2 GB RAM.
  • 40 GB of free hard-drive space to store buffered data.
  • A DVD-ROM drive.
  • TCP/IP-compatible network interface adapter for network communication and certain I/O drivers.

Microsoft Windows Server Many desktop-class computers are not certified to run Windows Server.

Check the Microsoft web site and your computer hardware vendor web site for possible conflicts between your hardware and Windows Server 2008 R2 SP1.

These specifications are sufficient to meet the needs of a small pilot application. However, production system requirements may be significantly different depending on many applicationspecific factors.

Please contact the Product Manager to review the requirements of your application.

Microsoft Cluster Service For the Microsoft Cluster service, the minimum hardware requirements are:

  • A 2.6 GHz clock-speed Intel Core i3 or i5 or i7 or Xeon or equivalent AMD Opteron CPU with minimum 8 GB RAM.
  • 80 GB of local, free hard-drive space.
  • 40 GB shared SCSI hard-drive (RAID preferred).
  • Two 100Mbit TCP/IP-compatible network interface adapters for network communication and certain I/O drivers (One for public network, another for private network).

Note: The configuration of each server added to the cluster must be identical to the other servers in the cluster.

Data Mirroring and Redundancy Service For the Data Mirroring and Redundancy service, the minimum hardware requirements are:

  • Minimum 8 GB RAM.
  • Dual Core Processor.
  • 64-Bit Operating System.

Note: If you are using single node setup, then it is recommended to use 32 GB RAM. Ensure that you are using the same hardware requirement for the mirror node as well.

Network Speed For a large Enterprise Historian setup, it is recommended that network speed is 1 GBPS.

Notes



  • If you are using single node setup, then it is recommended to use 32 GB RAM.
  • Ensure that you are using the same hardware requirement for the mirror node as well.
  • You must have a minimum of 10 GB free space available for the Data Archiver to start.
  • Many Desktop-class computers are not certified to run Windows Server. Check the Microsoft web site and your computer hardware vendor web site for possible conflicts between your hardware and Windows Server 2008 R2 SP1.

These specifications are sufficient to meet the needs of a small pilot application.

However, production system requirements may be significantly different depending on many application-specific factors.

Please contact the Product Manager to review the requirements of your application.

17

Outcomes

• Achieve fast time to value with simple installation and easy-to-use
web clients with integrated tag searching and drag-and-drop features
• Support high availability with data redundancy
• Leverage continuous and highly scalable data read-and-write
functionality
Reduce storage costs
• Save time and costs with seamless ingestion to HDFS, adding
time-series data to your big data analytics
• Take advantage of the time-saving dashboard, whereby critical data finds you

Features

• Easily deployable mirrored architecture based
on GE’s U.S.-patented highly efficient and secure
storage format
• Intelligent system diagnostic engine and
dashboard
Browser-based central administrative console
and trend client
UAA/OAuth2 Java Web Token security model
Multi-threaded for high performance
• Scales to millions of tags
Predix cloud connectivity
• Cloudera-certified method to move and query
data in HDFS / Hadoop to Parquet
• Public REST API

Punti di Forza

Integrazione avanzata con lo SCADA mediante  SCADA buffer

  • Semplice ed intuitiva configurazione
  • Vera amministrazione thin-client
  • Supporto per virtualizzazione

Elevate Performance

  • Architettura a 64-bit
  • Fino a 20 milioni di data point ed oltre 2000 collector per server
  • Campionamenti sotto il secondo

Compatibilità aperta e su livelli

  • Compatibilità completa a 32-bit
  • Ampio numero di collector, incluso supporto di applicazioni OPC A&E Embedded via Microsoft® Windows® XPe
  • Elevate compatibilità con soluzioni di terze parti

Interfacce Standard per Data Access

  • Open access per applicazioni ERP e MES § Integrazione di applicazioni via OLE DB, .net API, SDK e OPC HDA
  • Nuovo potente Collector Toolkit per interfacce dedicate

Sistema di diagnostica avanzato con  Windows Perf Mon Collector

  • Architettura Fault tolerant
  • Supporto per Microsoft Cluster Server
  • Ridondanza dei data collector
  • Security dei dati avanzata

Data Management più avanzato

  • Potete data management ed ottimizzazione dei sistemi con il Data Store  leader di settore
  • Progettato per la conformità a  regolamentazioni (Sox, 21CFRPart 11, ecc)
  • Calculation & server-to-server collection
